multi-spindles cnc router

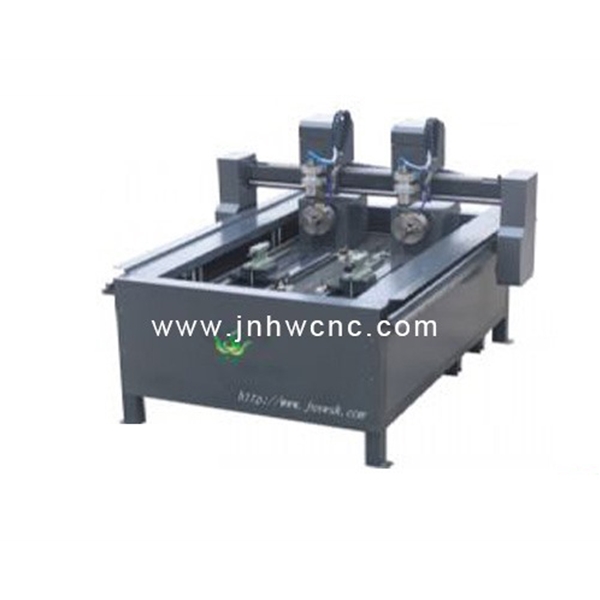

SW-1315-4T wood engraving machine
  • SW-1315-4T wood engraving machine

SW-1315-4T wood engraving machine

Category:multi-spindles cnc router

Product specifications:

Details

No.
description
Parameter
1
X, Y, Z axis travel

1300*1500*120mm

2
Platform Size
1600*1300mm
3
Maximum operating speed
12m/min
4
Maximum engraving speed
6-8m/min
5
Resolution
0.01mm
6
Repeatability
<0.05mm
7
processor
WEIHONG
8
Carving instructions
G code*.u00*.mmg*.plt
9
Software operating environment
win98/2000/xp
10
Operating Voltage
AC220V/50Hz
11
Spindle power
1.5KW
12
Spindle speed
0--24000r/min
13

Motor
Stepper

1, four sculpture: the same pattern can be four heads simultaneously, greatly increasing the processing speed of the plate, the same time to complete the work efficiency of the four devices, in some processing capacity is not the case, but also to achieve a single spindle work independently, effective and reasonable control of production costs.
2, batch processing, product consistency, high quality.

3, the overall cast iron bed, solid shape. Gantry mobile, fixed working table can be arbitrary processing work surface material.

4, Weihong CNC system can achieve breakpoint carving, power and memory function, intuitive and easy to operate, suitable for use relief carving.
5, compatible Type3 / Artcam / carved / Wentai and other CAD / CAM design software to generate G code for processing.

Designed for high-volume, small parts machining customers design, suitable for processing cabinet doors, gifts, relief craft, carving antique furniture, wall sculpture, engraving and non-ferrous metals and other cutting products industry.


On the production of more than 1,000.

Professional sales and service team, timely and efficient solution to your problem.
